Opis

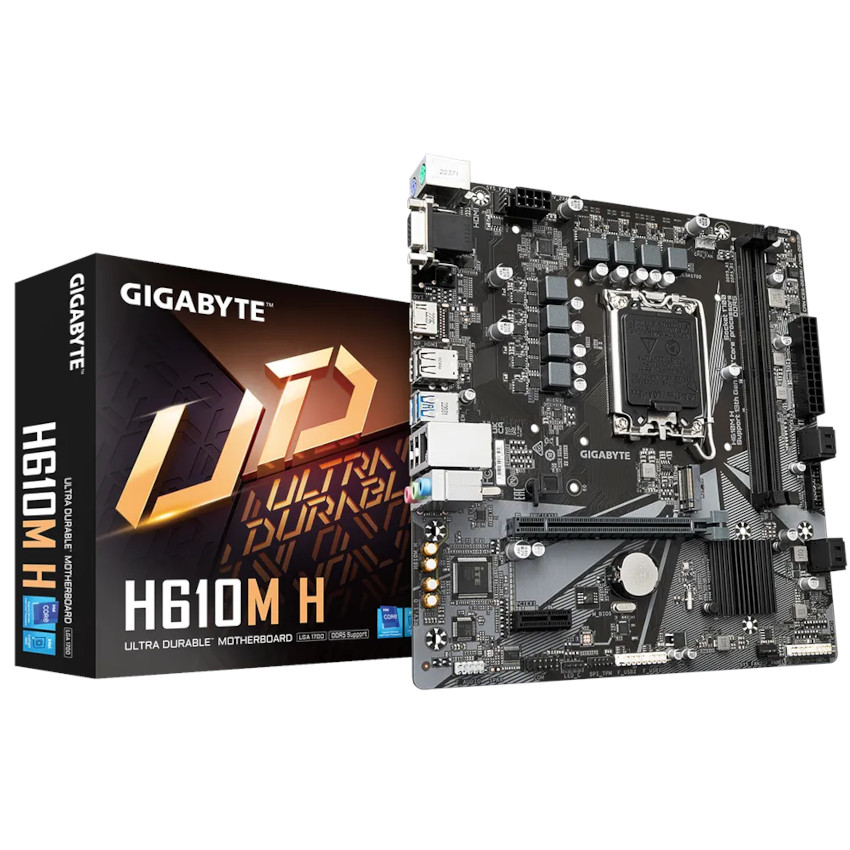

Model: H610M H
Podržani procesori: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron®
Chipset: Intel® H610 Express Chipset
Memorija: 2 x DDR5 DIMM sockets supporting up to 128 GB
I/O konektori: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Grafika: Onboard Graphics
Audio: Realtek® Audio CODEC
LAN: Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Napomena: Više detalja o proizvodu možete pogledati ovdje.
